The Future of Pipeline Integrity: How Nondestructive Testing (NDT) Transforms Pipeline Assessment Reliability and Accuracy
The Future of Pipeline Integrity: How Nondestructive Testing (NDT) Transforms Pipeline Assessment Reliability and Accuracy
Pipeline integrity isn’t just about preventing catastrophic failures—it’s about optimizing operations, maintaining regulatory compliance, and extending asset lifespan. Yet for decades, pipeline operators have faced significant hurdles in obtaining accurate material property data without disrupting operations.
Traditional methods, including destructive testing, have long been the industry’s go-to for assessing pipeline health. However, advancements in nondestructive testing (NDT) are shifting the landscape, providing operators with unparalleled accuracy, speed, and reliability in their assessments. In this deep dive, we explore how MMT’s next-generation NDT solutions are revolutionizing pipeline health and arming operators with the confidence they need to make informed, proactive decisions.
Traditional Pipeline Assessments Fail Operators: Here’s Why
Historically, pipeline operators relied on destructive testing methods, such as cutouts and lab-based mechanical testing, to determine material properties and assess structural integrity. This process involved physically removing pipeline sections, transporting them to labs, and waiting days or weeks for results. While effective, these methods came with significant downsides—pipeline shutdowns, material loss, and the potential for human error in reassembly.
Operational Downtime
Cutting out pipe sections requires shutting down or depressurizing the line, leading to production losses.
Limited Data Points
A single cutout provides a snapshot of material properties but lacks a comprehensive view of the entire pipeline.
Regulatory Challenges
Recent mandates, such as the 2019 Pipeline Safety Act, have introduced stringent requirements for verifying pipe grade and material properties—creating an urgent need for faster, more comprehensive testing solutions.
In contrast, modern NDT solutions like those pioneered by MMT allow for comprehensive pipeline assessments without interrupting operations. These advanced technologies deliver lab-grade insights in real-time, enabling proactive maintenance strategies that prevent catastrophic failures.
NDT: Powering Comprehensive Real-time Insight into Pipeline Health
Nondestructive Testing (NDT) is a game-changer for the pipeline industry, allowing operators to assess material properties, detect weaknesses, and verify pipeline integrity without physically removing sections of the pipe. Unlike destructive testing, which requires cutouts and lab-based analysis, NDT techniques collect in-field data while the pipeline remains operational—eliminating costly downtime and enhancing overall safety.
Digging Deeper: How Non-Destructive Testing Works

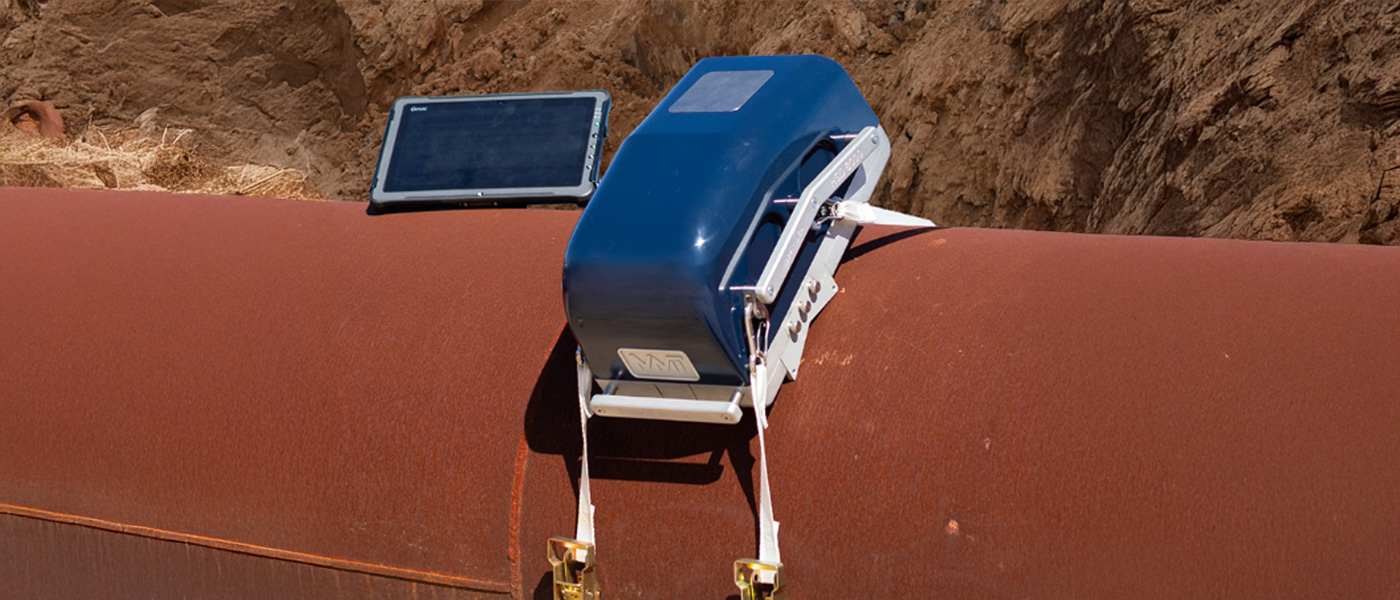

MMT’s High-Speed Deformation (HSD) technology is a breakthrough in nondestructive testing (NDT), enabling real-time material property assessments without the need for pipeline cutouts. This method employs a specialized testing device that combines precise indentation and controlled frictional sliding across the pipe’s surface, capturing an extensive dataset on yield strength (YS) and ultimate tensile strength (UTS)—two critical factors in determining pipeline performance under pressure.
HSD operates by creating a localized plastic deformation on the pipe’s surface, allowing the tool to measure how the material responds under stress. Unlike conventional methods that rely on static indentation (pressing a steel ball into the surface), HSD enhances accuracy by incorporating a dynamic, frictional sliding process—measuring how the material reacts not just at a single point, but across a continuous path.
How the process unfolds in real-time:
- Stylus Engagement: The HSD tool deploys a high-precision stylus that engages the pipe’s surface with controlled force.
- Frictional Sliding Measurement: The stylus then drags across the surface, continuously measuring resistance and deformation, capturing hundreds of micro-measurements per test run.
- Data Collection & Processing: The tool collects raw data on material hardness, deformation behavior, and stress-strain response, which is then processed through advanced algorithmic models to extract yield strength and UTS values.
- Instant Reporting: Within hours, the system compiles the data into a structured report, allowing operators to assess the pipe’s structural integrity and compliance with safety regulations.
Understanding the Benefits: How NDT Changes the Game
By delivering real-time, lab-grade material data without impacting operations, NDT empowers operators to act fast, prevent failures, and maintain compliance with evolving regulations. With instant insights into material strength, structural variations, and potential weaknesses, operators can shift from guesswork to precision-driven maintenance strategies.
No Cutouts, No Downtime: Preserve Pipeline Integrity While Capturing Crucial Data
Traditional tensile testing has long required pipeline operators to physically remove a section of the pipeline for off-site laboratory analysis. While effective, this process introduces significant drawbacks, from weakening the pipe’s structural integrity to causing operational disruptions that can delay production and increase costs. Entire sections of the pipeline may need to be depressurized or shut down to facilitate safe sample removal—further complicating an already time-consuming process.
MMT’s NDT technology eliminates the need for invasive procedures by capturing real-time material property data directly from the in-service pipeline, allowing operators to:
- Avoid material loss and costly cutouts that would otherwise reduce pipe wall thickness.
- Eliminate the risks associated with re-welding and reassembly, which can introduce new points of failure.
- Ensure pipeline sections remain pressurized and in operation while assessments are conducted, improving efficiency and reliability.
From Weeks to Hours: Accelerate Pipeline Data into Actionable Insights
Traditional pipeline assessments often require weeks of waiting for lab results, leaving operators in limbo as they face production delays, uncertainty, and potential safety risks. During this time, critical decisions—such as determining safe operating pressures, prioritizing maintenance, or meeting compliance deadlines—must be made with incomplete or outdated information.
MMT’s non-destructive testing (NDT) technology transforms this process by delivering lab-equivalent results within hours. With immediate access to high-resolution material property data, operators gain the clarity and confidence needed to proactively manage pipeline integrity. With faster results, operators can:
- Make data-driven decisions on the same day as the inspection, reducing delays in maintenance planning
- Act immediately on safety concerns, preventing minor issues from escalating into major failures
- Maintain compliance with regulatory reporting timelines without waiting on extended laboratory processing times.
Beyond a Single Snapshot: Capture the Whole Picture With High-Resolution Data
Traditional cutout-based tensile testing provides only a limited, single-location assessment of a pipeline’s material properties, capturing data from just one spot. This method assumes uniform material strength throughout the pipeline, but in reality, pipeline composition varies significantly along its length. A single isolated sample cannot provide the level of precision needed for truly informed decision-making.
HSD technology revolutionizes material testing by capturing hundreds of data points in a single pass, rather than relying on one fixed sample location. By scanning across the pipeline surface, HSD creates a full material profile, rather than a one-dimensional snapshot.
This high-density dataset provides operators with:
- Unparalleled measurement accuracy, capturing a far more detailed and reliable view of pipeline strength.
- Advanced statistical analysis, enabling engineers to detect subtle trends and correlations that a single-point test would miss.
- Predictive insights, helping operators anticipate and mitigate risks before they escalate into major failures.
- A deeper understanding of stress distribution, allowing for more precise calculations of pipeline performance under varying operational conditions.
A Proactive Approach to Pipeline Integrity: Detect Weaknesses Before Failures
Pipeline materials experience natural variations over time due to manufacturing differences, aging, corrosion, and repeated operational stresses. However, traditional testing methods only evaluate a single cutout sample, which may not reflect localized weaknesses or inconsistencies in the rest of the pipeline. These undetected variations can pose serious safety risks and make it difficult for operators to fully understand their pipeline’s true condition.
NDT and HSD technology solves this issue by conducting material tests at multiple locations along the pipeline, delivering a more accurate and representative assessment of material integrity. Unlike single-point cutout testing, non-destructive testing helps operators detect changes in material properties that develop over time—ensuring that maintenance strategies are based on real-world data rather than outdated assumptions.
By recognizing subtle variations before they jeopardize pipeline health, NDT helps operators:
- Assess the pipeline’s actual long-term integrity, rather than relying on one sample to represent the entire system.
- Detect localized material inconsistencies, such as hard spots, micro-fractures, or unexpected degradation, that could lead to failures if left unchecked.
- Monitor aging infrastructure proactively, helping operators make data-backed decisions about repairs, replacements, and pressure adjustments.
- Prioritize maintenance efforts based on real-time material data, rather than waiting for failures to dictate emergency repairs.
Simplifying Compliance: Reduce Risk and Stay Ahead of Regulations
Regulations surrounding pipeline integrity have become increasingly stringent following high-profile failures in the 1990s and 2000s. These incidents underscored the urgent need for accurate material verification, leading the Pipeline and Hazardous Materials Safety Administration (PHMSA) to introduce stricter mandates. In 2019, PHMSA reinforced these efforts by requiring operators to verify and document the mechanical properties of their pipelines—ensuring assets meet safety standards and can withstand operational stresses.
For operators, staying ahead of compliance is not just about avoiding fines—it’s about protecting people, the environment, and critical infrastructure. Advanced nondestructive testing (NDT) solutions play a crucial role in meeting these evolving regulatory requirements by delivering fast, reliable, and verifiable data without disrupting operations.
How NDT supports regulatory compliance and risk management:
- Verified material data, ensuring compliance with PHMSA and global safety standards while reducing the risk of undetected weaknesses
- Early detection of failures, identifying weak points, material inconsistencies, and degradation before they escalate into costly safety hazards or environmental risks
- Transparent audit support, delivering real-time, verifiable data that simplifies regulatory compliance and minimizes the risk of non-compliance penalties
- Informed decision-making, providing critical insights that help operators plan repairs, manage pressure, and maintain long-term pipeline integrity
The MMT NDT Technologies Reimagining Pipeline Health
From verifying pipe grade and assessing weld toughness to instant reporting and advanced structural analysis, MMT’s suite of NDT solutions empowers operators with the data they need—faster, more accurately, and without disruption. Here’s how these groundbreaking technologies are reshaping pipeline integrity management.
Pipe Body Toughness & Verification: Assessing Structural Strength in the Field
Pipeline materials face constant stress from mechanical loads, corrosion, and environmental conditions, making toughness verification essential for long-term asset integrity. MMT’s Pipe Body Toughness & Verification tool (BTM) provides lab-grade fracture toughness data directly from the field, allowing operators to evaluate material durability, crack resistance, and performance under stress—without destructive testing.
Unlike traditional methods that require sample removal, this innovative approach delivers precise Maximum Allowable Operating Pressure (MAOP) calculations, real-time crack propagation analysis, and strategic maintenance insights. By distinguishing minor imperfections from critical vulnerabilities, operators can prioritize repairs and prevent catastrophic failures before they occur.
Seam Weld Toughness: Integrity Where It Matters Most
Seam welds are among the most vulnerable points in a pipeline, constantly subjected to internal pressures and environmental stress. MMT’s Seam Weld Toughness testing provides a comprehensive, non-destructive evaluation of weld integrity—helping operators detect crack propagation risks, material inconsistencies, and potential weak points without disrupting operations.
Unlike conventional testing methods that rely on selective indentation, MMT’s technology captures detailed data across the base metal, heat-affected zone, and weld seam, delivering over 200 data points per weld in a single pass. This precision ensures compliance with regulatory standards and provides a clear, data-driven approach to improving long-term pipeline reliability.
Pipe Grade Verification: A Smarter Approach to Material Identification
Understanding a pipeline’s material grade is critical for ensuring safe operating pressures and regulatory compliance. MMT’s Pipe Grade Verification eliminates the need for costly cutouts and laboratory testing, providing high-speed, in-field data collection that is more accurate, reliable, and actionable than traditional methods.
By leveraging non-destructive HSD technology, this method delivers precise yield and tensile strength measurements—allowing operators to accurately calculate Maximum Allowable Operating Pressure (MAOP) and proactively reduce failure risks. With over 200 data points per test area, this solution offers a complete material assessment while keeping pipelines fully operational.
Explore Pipe Grade Verification >

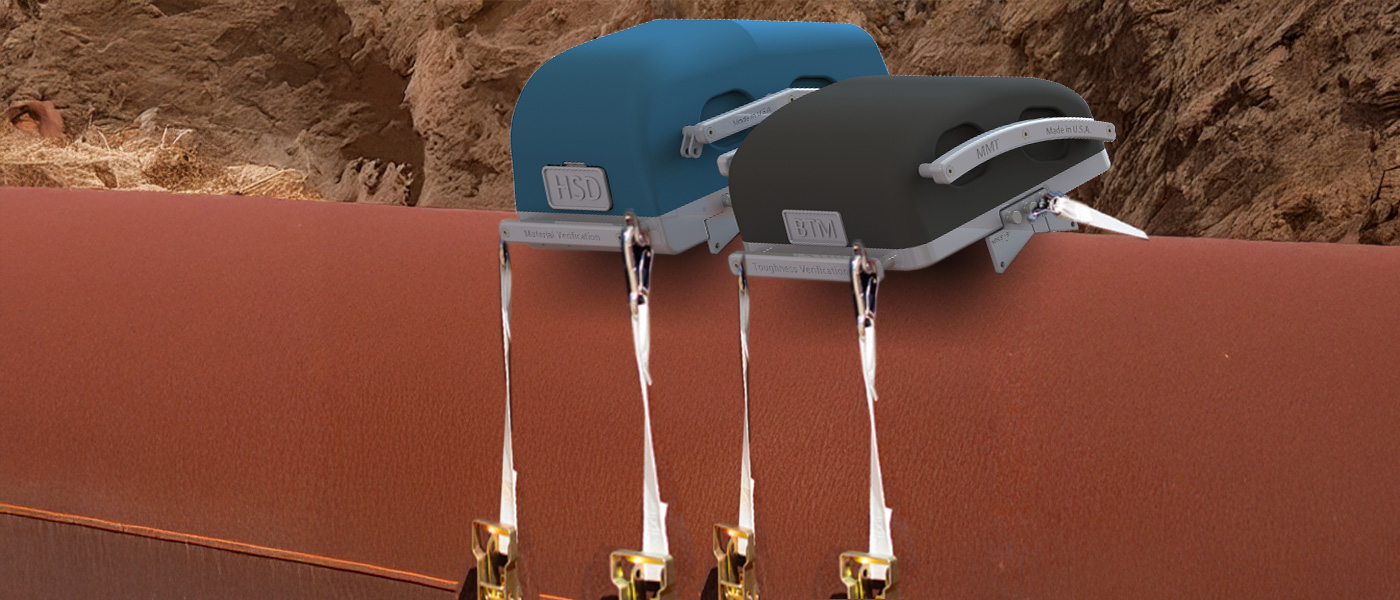

HSD Express Testing: Instant Results for Immediate Action
When every minute counts, operators need instant access to pipeline integrity data to make proactive, data-driven decisions. MMT’s HSD Express provides near-instant results, delivering comprehensive material property insights in real-time—a stark contrast to traditional lab tests that can take weeks to process.
This non-destructive solution enables operators to assess yield strength, ultimate tensile strength (UTS), and material anomalies within minutes, without disrupting pipeline flow. By combining automated data filtering with regulatory-aligned reporting, HSD Express enhances accuracy, minimizes downtime, and ensures compliance—faster than ever before.
HSD Plus: Deeper Insights for Long-Term Safety
While instant reporting is essential for rapid decision-making, deeper analysis is key to long-term pipeline resilience. MMT’s HSD Plus builds upon the capabilities of HSD Express, incorporating microscopy and chemical analysis to provide an advanced, multi-layered evaluation of pipeline health.
This extended analysis uncovers subtle structural variations, assesses grain size, and detects material fatigue—ensuring pipelines meet the most rigorous regulatory requirements. Designed for operators seeking long-term asset optimization and proactive maintenance planning, HSD Plus delivers unmatched insight into pipeline strength, integrity, and future performance.
Explore Comprehensive Testing >
Stronger Insights, Smarter Maintenance, Safer Pipelines
MMT’s cutting-edge NDT technologies eliminate guesswork, delays, and unnecessary downtime, giving operators the tools they need to assess pipeline integrity with confidence. By providing faster, more accurate, and more comprehensive data without the need for cutouts, HSD technology transforms the way operators assess and manage pipeline integrity. Whether for regulatory compliance, risk mitigation, or operational efficiency, HSD delivers the insights operators need—without compromising the pipeline’s structure or performance.
Ready to evolve your approach to pipeline assessments?
