Calibration of a Nondestructive BTM Tester for Accurate In-Field Fracture Toughness

Fracture toughness is vital in pipeline integrity management, helping operators assess whether materials can resist crack growth under real-world stress. This is especially critical in high-consequence environments, where small flaws can escalate quickly.

Accessing that data, however, has long come at a cost. Traditional methods often require removing pipe sections, halting operations, and waiting days or weeks for lab results. That trade-off between accuracy and operational disruption has left operators with an uncomfortable choice: guess, or delay.

Nondestructive (NDE) inspection was designed to eliminate that compromise, and MMT’s new Pipe Body Toughness and Validation Tool (BTM) is at the forefront of that shift. Powered by the planing-induced microfractures technology, the BTM delivers lab-grade fracture toughness data directly from the field, with minimal surface disruption and no need to cut pipe.

A key component of that capability is calibration. In this article, we’ll explain why calibration ensures the accuracy and reliability of NDE inspection and how it turns raw field data into confident, actionable decisions.

Why Fracture Toughness Matters in Pipeline Steel

Unlike strength, which measures how much load a material can carry before deforming or breaking, toughness quantifies a material’s ability to absorb energy and resist the propagation of a crack. In pipelines, this means how well the steel resists crack growth under real-world operating conditions, which often involve varying stresses and potential imperfections..

Pipelines rarely operate under perfect conditions. They endure vibration, pressure cycling, temperature fluctuations, ground movement, and corrosion, all of which can initiate cracks. Once a crack forms, low fracture toughness makes it far more likely to spread quickly, increasing the risk of leaks or ruptures.

That’s why accurate, field-verified toughness data is so valuable. It helps operators:

• Confirm or recalculate the Maximum Allowable Operating Pressure (MAOP) based on actual material properties.
• Make more informed decisions during material verification and ILI reviews.
• Shift from reactive to proactive maintenance, identifying which anomalies can wait and which demand immediate action.

Fracture toughness isn’t just a number; it’s a critical predictor of pipeline resilience. And without verified data, many operators default to conservative assumptions or overlook early signs of failure. The more precisely toughness can be measured, the more confident and strategic your pipeline decisions become, directly supporting fitness-for-service calculations and material verification workflows.

See how the BTM delivers lab-grade fracture toughness data in the field >

What Is the BTM Tool?

The BTM Tool is MMT’s newest advancement in NDE inspection. Designed to measure fracture toughness directly in the field, the BTM provides operators with the data they need to assess the resilience of pipeline materials without removing a single section of pipe.

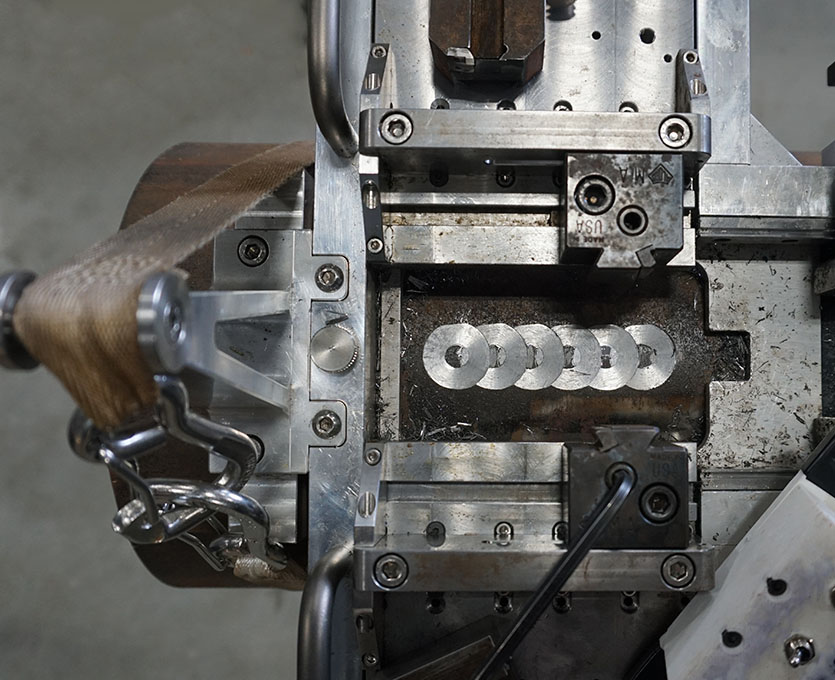

At the heart of the tool is MMT’s patented planing-induced microfracture technology, which goes beyond conventional indentation. Instead of merely pressing into the steel, the BTM tool employs a specialized blade to perform a controlled, localized planing motion across a small “island” on the pipe’s surface. As the blade removes a thin layer, the uncut material at the blade’s central opening is specifically engineered to generate a microfracture. This process generates minuscule, measurable fractured ligaments whose characteristics are directly correlated with the material’s toughness, offering a precise insight into its behavior under stress without compromising pipeline integrity.

While traditional lab-based methods like Charpy V-Notch (CVN), CTOD, or J-integral testing still have their place, they’re time-consuming, invasive, and impractical for in-service pipelines. The BTM tool bridges that gap, offering lab-grade data from within the ditch, without destructive cutouts, lab processing, or downtime.

For a deeper technical overview, see our 2025 PPIM presentation on in-ditch pipe body toughness testing.

The Importance of Calibration in Toughness Testing

Accurate data is only as good as the system that produces it. In NDE inspection, especially when decisions about safety, pressure ratings, and repairs are on the line, calibration isn’t optional.

Calibration ensures accuracy, repeatability, and traceability. It guarantees that the same test performed under the same conditions delivers consistent results and that every measurement can be traced back to a verified standard.

For the BTM tool, calibration verifies that every component performs as expected—maintaining consistent force application, blademotion, and sensor response. This process ensures the tool delivers reliable, repeatable results under varied field conditions.

Small variances could skew fracture toughness readings without calibration, leading to over-conservatism or missed risks. With proper calibration, BTM results can be trusted by operators, regulators, and asset integrity teams.

How BTM Fits into a Modern Integrity Workflow

The BTM tool is built for how pipeline teams work today. It integrates easily into NDE inspection workflows, digital reporting platforms, and engineering reviews.

MMT’s reporting also ensures that BTM data is delivered quickly and clearly, with calibration records and engineering-ready formats. For operators working under Mega Rule mandates, BTM helps generate traceable, verifiable, and complete (TVC) records without shutting down operations.

The Future of Nondestructive Toughness Validation

The future of toughness testing is nondestructive, data-rich, and fully integrated into decision-making. With the BTM tool, you don’t have to choose between speed and safety, or data and downtime.

As industry standards evolve and expectations rise, MMT’s BTM tool provides a smarter, field-ready method for validating pipeline resilience, with zero test failures, full traceability, and unmatched accuracy.

Eliminate destructive cutouts, reduce downtime, and validate fracture toughness in real time. Schedule a demo or contact us to learn more.
